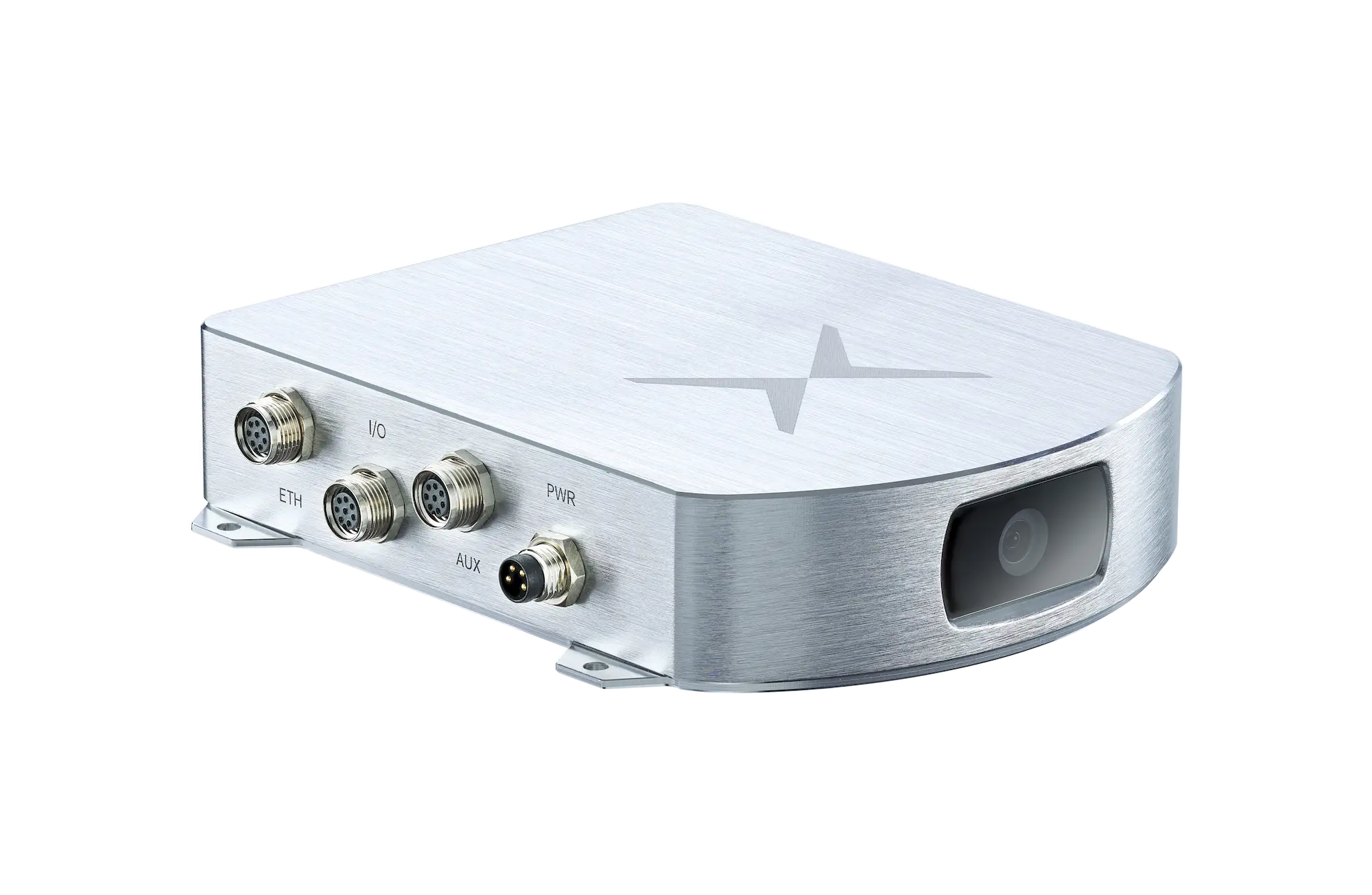

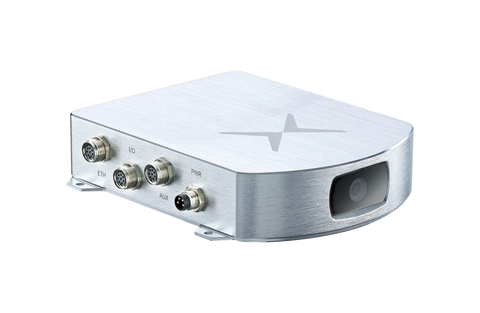

Vision-RTK 2 Starter Kit
Includes everything for a quick start: sensor unit, RTK-GNSS antennas, mounting system, suctions cups, Wi-fi antenna, ethernet cable, battery, battery charger, battery power cable, power cable.
Does not include shipping price
Does not include customs duties or import taxes
Benchmark performance for your use case
Includes everything for a quick start
5 Minutes quick set up, with good documentation
Including two 60-minute support calls with application engineer
Shipping within Europe
Made in Switzerland
4-5 week delivery
Enabling precise global positioning everywhere
Our deep sensor fusion technology provides precise global positioning anytime, anywhere
Industry Standard Connectors
Compact and lightweight
Swiss Made
Including the following content
No items found.
Specifications
Length × width × height
65 × 72 × 17 mm
Weight
49 g
Dimensions
Length × width × height
114 x 130 × 100 mm
Weight
420 g
Environmental specifications
Operating and storage temperature
-35 °C to +85 °C
features
Vision-RTK 2: Deep sensor fusion technology
IMPLementation
A quick start for testing and evaluation!
Benchmark performance for your use case.
Out-of-the-box solution to get started with ease
5-minute setup with comprehensive documentation
Including two 60-minute support calls with application engineer
FAQ
Frequently asked Questions and answers
Where can I find Fixposition’s GNSS transformation library and information of ROS driver?
If I select Fixposition’s solution, what journey can I expect?
Evaluation stage
We will work with you to study your application, hardware, software platform, and specific requirements. You can use your Starter Kit to evaluate our positioning sensor in your application environment. We will provide you with a platform to upload your data to be reviewed by our engineers and help us support you.
Design-in stage
Our off-the-shelf solution is plug-and-play, thanks to our compliance with industry-standard interfaces and protocols. We can adapt our hardware and software to your application requirements for high-volume sales. Once our sensor is integrated, we will work with you to optimize performance via fine-tuning.
After-sales support
After your solution goes into production, we offer continued software updates to ensure your product is up to date. As your product matures, we would be pleased to work with you to support feature requests and your evolving needs.
What is the difference between Vision-RTK 2 and other positioning products?
Vision-RTK 2 combines the best of global positioning (enabled by GNSS) and relative positioning (VIO).
We have developed state-of-the-art sensor fusion technology to overcome weaknesses in individual sensors and provide high-precision position information in all environments. Our technology removes the time-dependent drift characteristics that are typical of solutions that solely rely on inertial measurement units (IMU) for dead reckoning.
We have developed a unique technique that delivers a more robust and precise solution than the typical Kalman filter-based approaches used by other solutions on the market.
Our solution is easily integrable into a variety of robots with the ability to take further sensors as input as they become available.
In what type of applications have your customers deployed the Vision-RTK 2?
All forms of autonomous solutions including:
- Autonomous shuttles.
- Small/medium-sized robots used for delivery, patrolling, rescue, and cleaning.
- Robot lawnmowers.
- Agricultural robots such as tractors, harvesters, planters, and sprayers.
- Small high-volume agricultural robots.
Beyond the Vision-RTK 2 sensor, what else do I need?
- An internet connection.
- A third-party RTK correction data subscription (NTRIP) (request more details about our bundle options with Topcon by sending an email to sales@fixposition.com)
- Optionally: wheel tick sensor input.
Fixposition Distributors
Find the Vision-RTK 2 in your area
ARGO: Japan
Go to shop: https://www.argocorp.com
MYBOTSHOP: Europe
Go to shop: www.mybotshop.de
Movella: International
Go to shop: www.movella.com
T-Max: China
Go to shop: www.t-maxtech.com
Request your Starter Kit now
- Plug and play solution: Fully configured and calibrated to start evaluation immediately
- All inclusive: Includes antennas, cables ,and batteries needed for full operation
- Open source ROS 1/ROS 2 drivers for easy integration and adaption to your system
Instantaneous heading estimate
Adds redundancy
Global position
Velocity
Orientation
GNSS observations
Camera images
IMU measurements
Wheel speed
Feature tracking
IMU’s distance-dependent drift
